Product Details
Precision in Flow Control, Excellence from Zhongyuan
-
Product Features
-
Structural Configuration
-
Main Performance Parameters
-
Product Features
驱动方式
涡轮、气动、液动、电动等
-
Structural Configuration
-

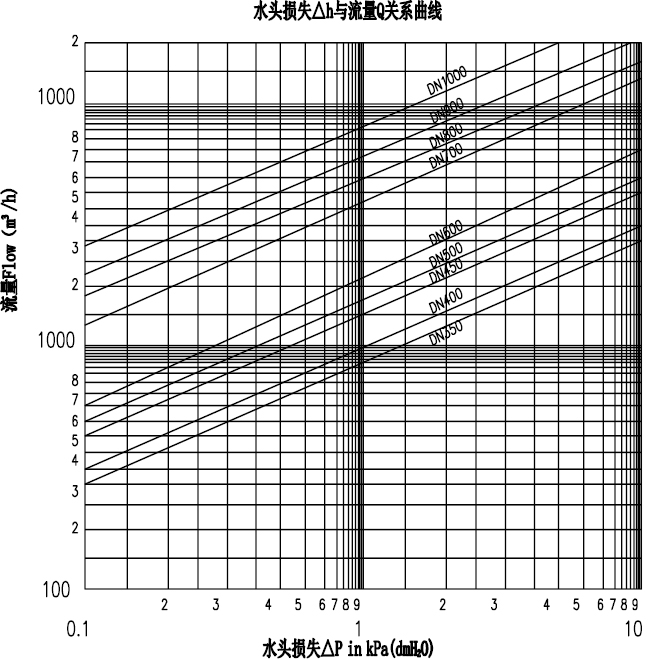

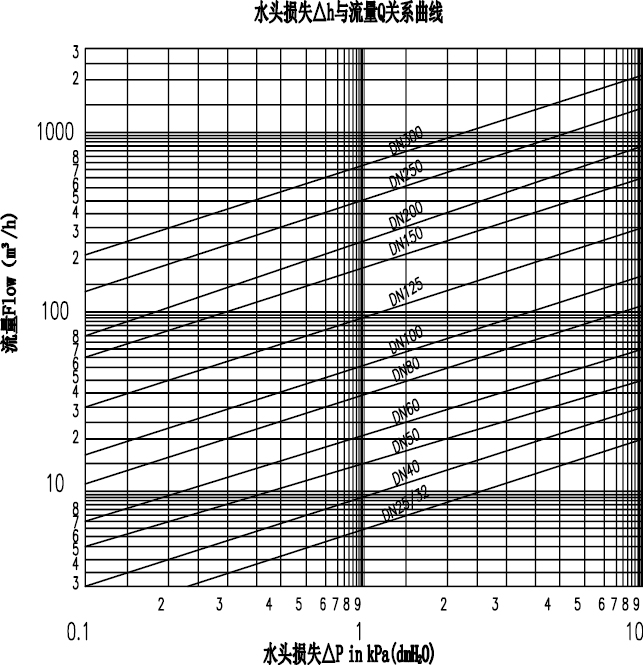

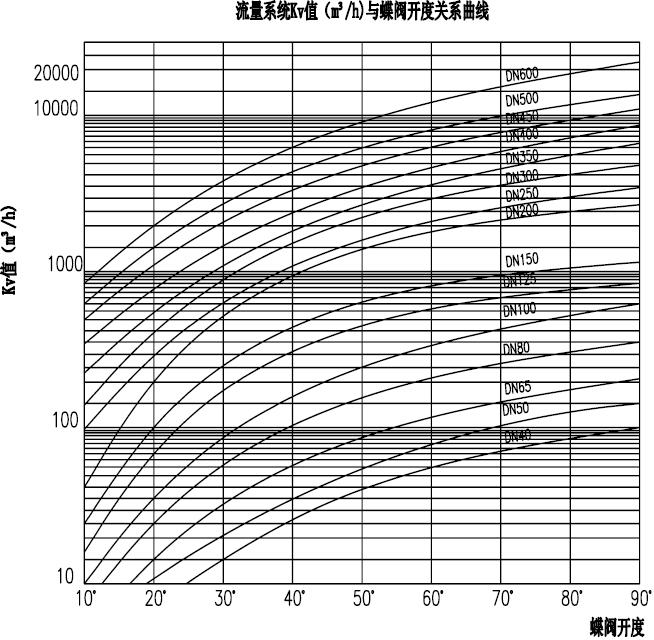

Main Performance Parameters
| 规格DN | 阀门开启角度流量Cv值 | 90°
开启时
Cv值 |
| DN（mm） | inch | 10° | 20° | 30° | 40° | 50° | 60° | 70° | 80° |
| 50 | 2 | 0.1 | 5 | 12 | 24 | 45 | 64 | 90 | 125 | 135 |
| 65 | 2.5 | 0.2 | 8 | 20 | 37 | 65 | 95 | 144 | 204 | 220 |
| 80 | 3 | 0.3 | 12 | 22 | 39 | 70 | 116 | 183 | 275 | 302 |
| 100 | 4 | 0.5 | 17 | 36 | 78 | 139 | 230 | 364 | 546 | 600 |
| 125 | 5 | 0.8 | 29 | 61 | 133 | 237 | 392 | 620 | 930 | 1022 |
| 150 | 6 | 2 | 45 | 95 | 205 | 366 | 605 | 958 | 1437 | 1579 |
| 200 | 8 | 3 | 89 | 188 | 408 | 727 | 1202 | 1903 | 2854 | 3136 |
| 250 | 10 | 4 | 151 | 320 | 694 | 1237 | 2047 | 3240 | 4859 | 5340 |
| 300 | 12 | 5 | 234 | 495 | 1072 | 1911 | 3162 | 5005 | 7507 | 8250 |
| 350 | 14 | 6 | 338 | 715 | 1549 | 2761 | 4568 | 7230 | 10844 | 11917 |
| 400 | 16 | 8 | 464 | 983 | 2130 | 3797 | 6282 | 9942 | 14913 | 16388 |
| 450 | 18 | 11 | 615 | 1302 | 2822 | 5028 | 8320 | 13168 | 19752 | 21705 |
| 500 | 20 | 14 | 791 | 1674 | 3628 | 6465 | 10698 | 16931 | 25396 | 27908 |
| 600 | 24 | 22 | 1222 | 2587 | 5605 | 9989 | 14949 | 22769 | 34898 | 43116 |
